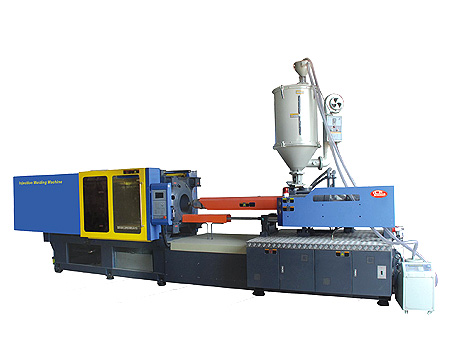

PET/BOPP special machine feature
¡òSince PET performs are thick walled,The PET series injection molding machine are designed with large space tie bars,large moule opening stroke,large maximum mould height and large ejection stroke,the machine screw diameter is big to give sufficient shot weight,The screw is also prolonged,which the L/D ration can be reached to 24:1.so that preform are produced with uniform wall,brightly and transplant.

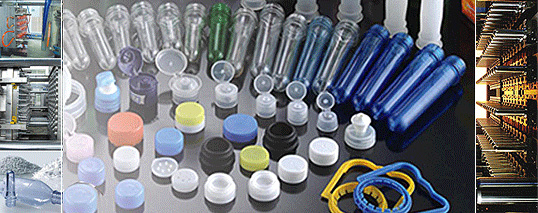

¡òWe have seven types of the PET appropriative injection molding machine which the injection volume is range from 400 to 3200g,cavity No is range from 1 cavity to 48 cavity,and can produce the bottle volumme form 20ml to 18.9L.
¡òEach model of the cap appropriative injection molding machine can adopt the outside-mould cooling system as the choice,which can shorten the preform forming circle time.
Injection Molding Machines Technical Parameter
|
General Information |
PET450 |
PET680 |
PET1000 |
PET1450 |
PET1800 |
PET2300 |
PET3200 |
|
Injection unit |
50 |
60 |
68 |
70 |
80 |
85 |
90 |
|
Screw Diameter(mm) |
25 |
25 |
25 |
26 |
26 |
26 |
26 |
|
Shot Weight(PET@1.35)(g) |
400 |
650 |
1000 |
1450 |
1800 |
2300 |
3200 |
|
Shot Weight(BOPP@0.9)(g) |
266 |
430 |
660 |
960 |
1200 |
1500 |
2100 |
|
Injection Pressure(Mpa) |
1147 |
1036 |
1082 |
1136 |
1132 |
1132 |
1132 |
|
Clamping unit |
PET450 |
PET680 |
PET1000 |
PET1450 |
PET1800 |
PET2300 |
PET3200 |
|
Clamping Force |
1500 |
1680 |
2180 |
2800 |
3380 |
3980 |
5580 |
|
Toggle Stroke(mm) |
380 |
430 |
470 |
540 |
670 |
720 |
780 |
|
Min.Mold Thickness(mm) |
170 |
180 |
200 |
220 |
240 |
280 |
280 |
|
Max.Mold Thickness(mm) |
480 |
500 |
530 |
650 |
710 |
850 |
850 |
|
Space Between Tie Bars(mm) |
410¡Á410 |
460¡Á460 |
505¡Á505 |
570¡Á570 |
660¡Á660 |
720¡Á720 |
800¡Á800 |
|
Movable Platen Size(mm) |
600¡Á600 |
675¡Á675 |
740¡Á740 |
840¡Á845 |
980¡Á980 |
1035¡Á1035 |
1100¡Á1100 |
|
Ejector Stroke(mm) |
120 |
130 |
135 |
145 |
160 |
160 |
180 |
|
Ejector No(N) |
5 |
5 |
9 |
9 |
13 |
13 |
13 |
|
General |
PET450 |
PET680 |
PET1000 |
PET1450 |
PET1800 |
PET2300 |
PET3200 |
|
Pump Motor Power(kw£© |
15 |
18.5 |
22 |
30 |
37 |
37 |
45 |
|
Heater Powre |
8.5 |
9.2 |
13.5 |
17.6 |
21.3 |
23.8 |
26.7 |
|
Oil Tank Capacity(L) |
230 |
240 |
340 |
570 |
620 |
950 |
1000 |
|
Max.Pump Pressure(MPa) |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
|
Machine Dimensions(L¡ÁW¡ÁH)(m) |
4.8¡Á1.5¡Á2.0 |
5.4¡Á1.7¡Á2.2 |
5.7¡Á1.8¡Á2.3 |
6.3¡Á1.9¡Á2.4 |
6.6¡Á2.22.7 |
7.3¡Á2.2¡Á2.7 |
8.3¡Á2.2¡Á2.7 |
|
Machine Weight(Approximat)(t£© |
3.7 |
5 |
6.5 |
8.1 |
12 |
14.2 |
22 |
|
PET 12-Cavity.Weight Per Preform(g) |
32 |
54 |
79 |
111 |
173 |
173 |
173 |
|
PET 16-Cavity.Weight Per Preform(g) |
24 |
40 |
59 |
83 |
130 |
130 |
130 |
|
PET 24-Cavity.Weight Per Preform(g) |
- |
- |
39 |
55 |
86 |
86 |
86 |
|
PET 32-Cavity.Weight Per Preform(g) |
- |
- |
- |
41 |
65 |
65 |
65 |
|
PET 48-Cavity.Weight Per Preform(g) |
- |
- |
- |
- |
- |
43 |
43 |
|
PP 12-Cavity.Weight Per Preform(g) |
21 |
36 |
53 |
74 |
115 |
115 |
115 |
|
PP 16-Cavity.Weight Per Preform(g) |
16 |
27 |
39 |
55 |
86 |
86 |
86 |
|
PP 24-Cavity.Weight Per Preform(g) |
- |
- |
26 |
37 |
57 |
57 |
57 |
|
PP 32-Cavity.Weight Per Preform(g) |
- |
- |
- |
27 |
43 |
43 |
43 |
|
PP 48-Cavity.Weight Per Preform(g) |
- |
- |
- |
- |
- |
28 |
28 |
Due to our technical progress,if the parameter of the catalogue is different with the equipment status,the parameter will be based on the equipment.
