The manual of the extrsion blow molding machine. With resin storage of plastic can up to 22L, longe can offer biggest 250L luggage, bucket and shaped pieces. The machine adopt full closed loop control, the hydraulic system use pressure and running control system, variable plunger pump to make sure the machine work stable, reduce the energy consumption of the hydraulic system and save power.

We are the profeesional blow moulding machines manufacturer and supplier in China, please feel free to contact us.

Features:
1).The screw adopts high potency melt to make sure the material well mixed.
2).Adopt frequency control of motor system to reduce the power consumption.
3).Adopt horizontal movement frame to improve stability and speed.
4).The oil cylinder is in the center of the moldboard, uniform stress for quality products and increase life span.
5).High stench guild rod controller the mold open and clamp, to enhance the steadily and high efficiency.
6).The extrusion head use spreader or screw type to well mixed the thickness and easy to change different color.
7).Advanced design to eliminate the melt material degrade in the runner, to avoid the perform draw-down and the welding line.
8).The precise time control system assured good quality, suitable weight and reduces production cycle.
9).Freely to move the extrusion foundation backward or forward to make the exchange of the mold easy.
10).Multi-function bottom blowing type for shaped products.
11).The mechanical arm can take out the product automatically.

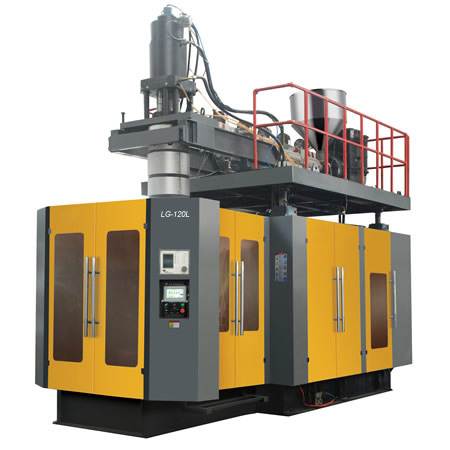

Model No.	Unit	LG-S120L	LG-160L	LG-S260L
Max.Product Volume	L	120	160	250
Dry cycle	pc/h	360	300	300
Screw Diameter	mm	100	120	120
Screw L/D ratio	L/D	24～26	24～26	24～26
Screw motor power	Kw	45～75	90	90～132
Screw heating capacity	Kw	8.4～10.5	12.1～14	22
No. of heating zone	Zone	4～5	6	6
Output of HDPE	Kg/hr	200～280	250～350	450
Oil pump drive power	Kw	37	37	45
Clamping force	KN	440～650	740～850	900
Mold stroke	mm	500～1400	600～1500	720～1800
Size of Mold	(W*H)mm	900×1450	900×1450	900×1450
Max.die diameter	mm	420	510	600
Die heat capacity	Kw	10.8	12	15
Capacity	L	12.8	18	22
Blowing pressure	Mpa	0.8	0.8	0.8
Air Volume	M＾3/Min	1.6	1.6	1.6
Cooling water pressure	Mpa	0.3	0.3	0.3
Water consumption	L/min	150	180	250
Weight of machine	Ton	17	19	35
Size of machine(L*W*H)	m	5.2×2.5×4.2	5.8×2.6×4.4	7.8×2.9×5.4
