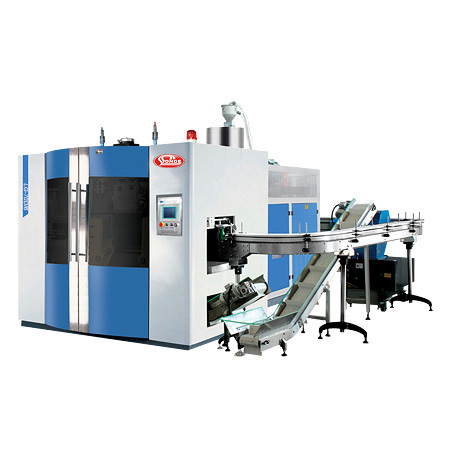

| Juice Milk Bottle Extrusion Blow Molding Machine |
|
|
The manual of the automatic extrusion blow molding machine. Taizhou Huangyan longe Mould Co.,Ltd. is a professional supplier devoted to the series of the extrusion blow molding machine from 5ml to 12L. The company offered quality machine with single die to six die, can produce up to multi-layer. The entire machines adopt advantage control system and have got CE certification.
     General Specifications
|
Model No. |
Unit |
LG-S70D/6 |
|
Max.Product Volume |
L |
0.3L/6 |
|
Dry cycle |
pc/h |
600¡Á2 |
|
Screw Diameter |
mm |
70/80 |
|
Screw L/D ratio |
L/D |
24¡«26 |
|
Screw motor power |
Kw |
30 |
|
Screw heating capacity |
Kw |
4.7 |
|
No. of heating zone |
Zone |
4 |
|
Output of HDPE |
Kg/hr |
75¡«80 |
|
Oil pump drive power |
Kw |
22 |
|
Clamping force |
KN |
120 |
|
Mold stroke |
mm |
240¡«460 |
|
Size of Mold |
(W*H)mm |
380¡Á380 |
|
Max.die diameter |
mm |
145 |
|
Die heat capacity |
Kw |
7.65¡«11.45 |
|
Blowing pressure |
Mpa |
0.7 |
|
Air Volume |
M£Þ3/Min |
0.5 |
|
Cooling water pressure |
Mpa |
0.3 |
|
Water consumption |
L/min |
80 |
|
Weight of machine |
Ton |
12 |
|
Size of machine(L*W*H) |
m |
3.7¡Á2.8¡Á2.5 |
|
|
 |
|
 |
|
|
