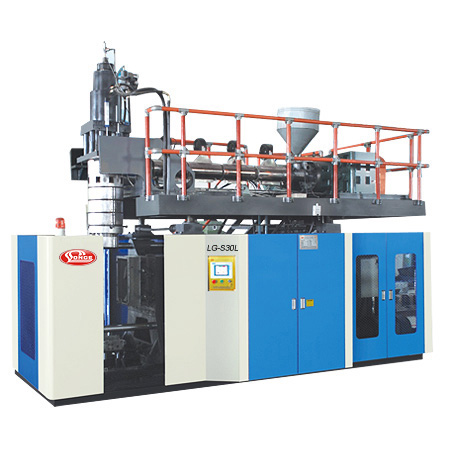

On the comples production of industrial products,longge series large containers extrusion blow molding machine can provide high efficiency production, the maxresin storage of plastic can up to 41KG on the storage cylinder,quick and easy processing on changing the material on colors, the precise design of the die head can greatly reduce the wastage, improve the production efficiency.


Technical Specifications

Model No.	Unit	LG-2S2L	LG-2S5L	LG-2S2L/T	LG-2S5L/T	LG-2S12L
Max.Product Volume	L	2	5	2L/1	5L/1	12L/1;5L/2
Dry cycle	pc/h	800×2	600×2	750×2	700×2	600
Screw Diameter	mm	60	70	55～60	70V80	90
Screw L/D ratio	L/D	24～26	24～26	24～26	24～26	24～26
Screw motor power	Kw	15～18.5	22	3.3/15	3.3/22	37～45
Screw heating capacity	Kw	3.3～4.5	5.04～8.2	5.04～6.7	6.8～10.3	7.3～9
No. of heating zone	Zone	3～3	3	3	3～3	4
Output of HDPE	Kg/hr	50～60	70～75	50～70	70～80	100～110
Oil pump drive power	Kw	7.5	7.5	7.5	7.5	11
Clamping force	KN	38	60	38	60	110
Mold stroke	mm	138～368	148～508	138～368	148～508	300～700
Max Size of mold	(W*H)mm	300×320	370×390	300×320	370×390	500×510
Capacity	L	90	145	90	145	220
Max.die diameter	mm	1.8～3.5	3.5～4.3	2.8～3.5	3.5～4.3	4.4～5.5
Die heat capacity	KW	0.6～0.8	0.6～0.8	0.6	0.7	0.7
Blowing pressure	Mpa
Air volume	M＾3/Min	0.4	0.6	0.4	0.6	0.6
Cooling water pressure	Mpa	0.3	0.3	0.3	0.3	0.3
Water consumption	L/min	50	60	55	65	70
Size of machine(L*W*H)	m	4	4.8	4.1	5	11.2
Weight of machine	TON	3×2×2.1	3.5×2.1×2.1	3×2×1.75	3.5×2.1×2.1	3.5×3.5×2.6
